Ultimate Guide to Different EV Charging Types

As electric cars become more common around the world and grow faster, the need for charging them is also rising every day. The technology for charging these cars is always getting better. Whether you are new to the electric vehicle (EV) charging field or have a lot of experience, you will find the information you need in this ultimate guide.



What is EV Charging?

EV Charging refers to the process of supplying electricity to electric vehicles (EVs) through charging equipment, similar to how a charger powers up a smartphone. For electric vehicles, charging equipment plays an indispensable and crucial role.



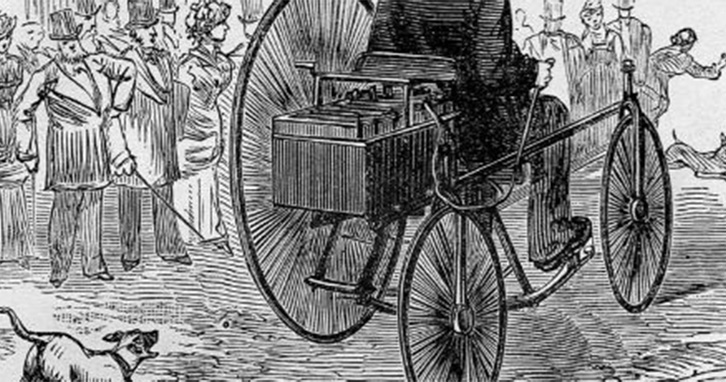

History of EV Charging

The advent of electric vehicles at the end of the 19th century prompted the development of EV charging equipment. The earliest electric vehicles used lead-acid batteries and required specialized facilities for manual charging. This method was primitive, slow, and inefficient. However, as charging technology has continuously improved and evolved, modern EV charging technology has not only established international standards but also created various charging methods to meet different users’ needs, resulting in better charging efficiency and user experience.

How EV Charging Works?

Currently, there are two main types of EV chargers available on the market: AC (Alternating Current) and DC (Direct Current). Regardless of the type chosen, the basic principle is to transfer electrical energy provided by the power grid into the electric vehicle’s battery to charge it. These two charging methods cater to different needs and usage scenarios, which we will explain in more detail.

Types of EV Charging

Based on the Current Type

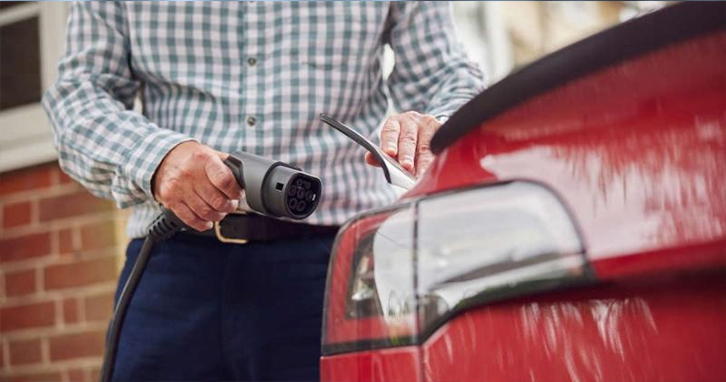

AC EV Charging: In AC (Alternating Current) charging, the AC electricity provided by the power grid is fed into the vehicle’s onboard charger. The onboard charger then converts the AC to DC (Direct Current) to charge the battery.

DC EV Charging: This involves directly converting the power grid’s AC electricity to DC, bypassing the vehicle’s onboard charger, and charging the electric vehicle’s battery directly.



Based on Charging Power

Level 1 Charging: Connects directly to a standard 120V AC outlet (typical household outlet in the USA); it can provide 6–16 Amps (0.7–1.92 kilowatts or “kW”) of current, depending on the capacity of the dedicated circuit. Typically, every hour of charging adds about 2 to 5 miles of driving range.

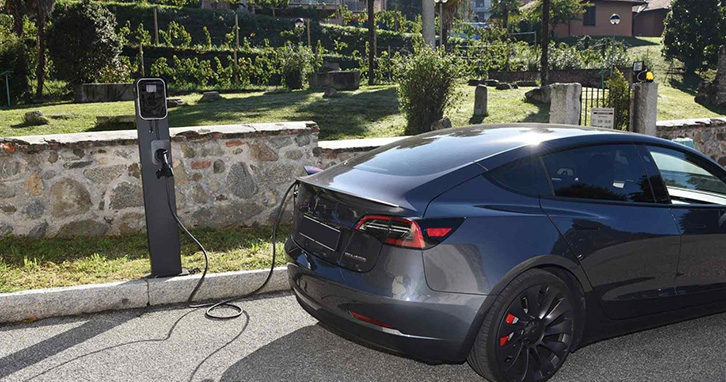

Level 2 Charging: Uses a 240V (single-phase) or 208V (three-phase) power supply to provide 6 to 80 Amps (1.4–19.2 kW) of current. Compared to Level 1 charging, its charging speed is significantly faster. Typically, every hour of charging can add about 10 to 60 miles of driving range.

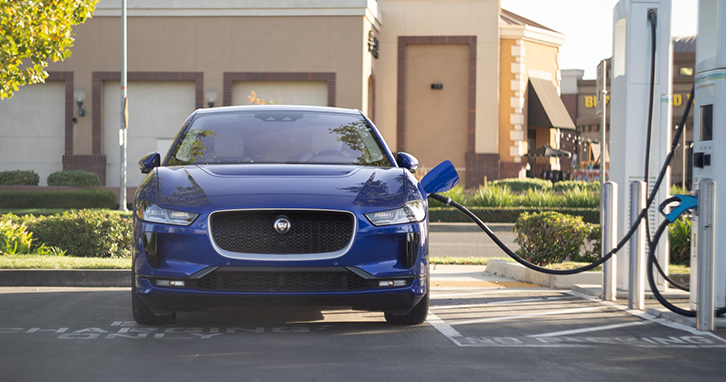

Level 3 Charging: Also known as DC fast charging or Level 3 charging, it offers power ranging from 50–1000V at up to 80-400 kW. It can charge an electric vehicle’s battery to 70%-80% in about 20-30 minutes.



Based on Safety and Technical Standards

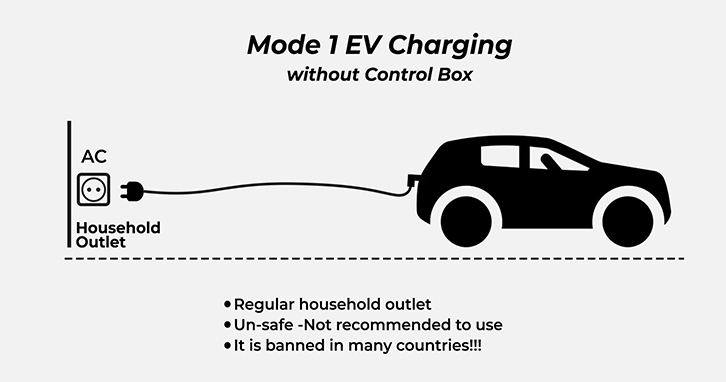

Mode 1 EV Charging: Refers to charging an electric vehicle by plugging a simple extension charging cord into a wall outlet without any safety protection measures. If any issues arise with the extension cord during use, it can pose a significant safety threat to the house, electric vehicle, and users. Due to the zero safety of this charging method, it is banned in many countries!!!

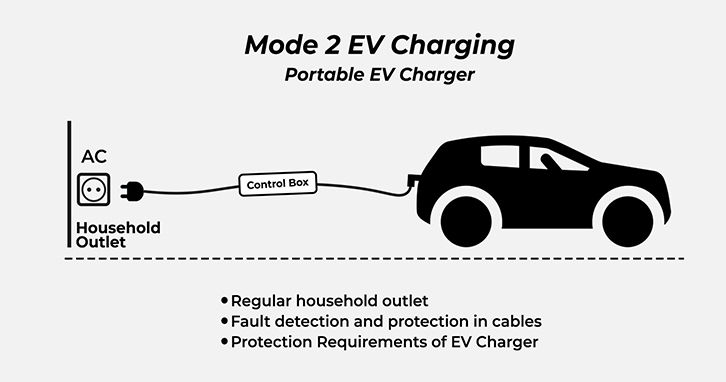

Mode 2 EV Charging: Utilizes a portable charging device with safety features (such as a portable EV charger) to slowly charge the vehicle through a standard AC outlet. Compared to Mode 1 charging, Mode 2 charging devices are usually equipped with built-in protection mechanisms that help prevent electrical fires and reduce the risk of electrocution during charging.

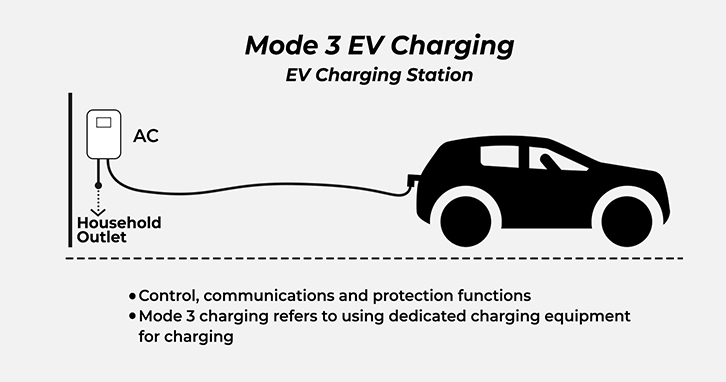

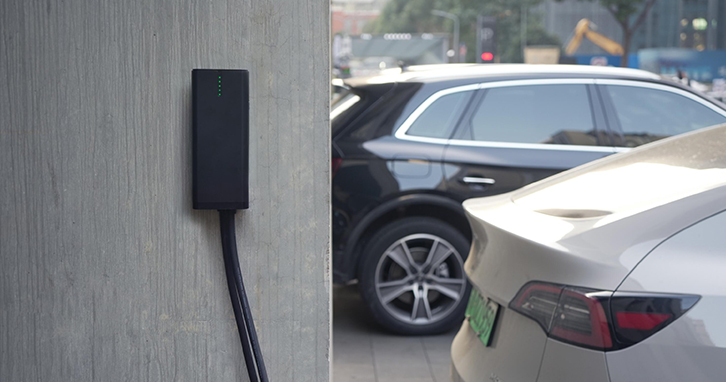

Mode 3 EV Charging: Mode 3 charging refers to using dedicated charging equipment (such as an EV charging station) for charging. It is the most common method of charging electric vehicles today, and Mode 3 charging is more advanced in terms of safety and charging efficiency compared to Modes 1 and 2.

Special Charging Technologies

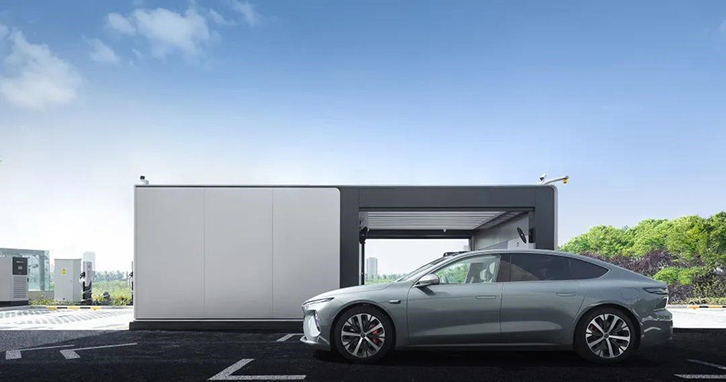

Battery Swapping: This method involves replacing a depleted battery pack with a fully charged one at a charging station, allowing the electric vehicle to quickly regain power. The entire process takes only about three minutes to complete. Currently, NIO in China is the only car brand globally offering battery-swapping services to the public.

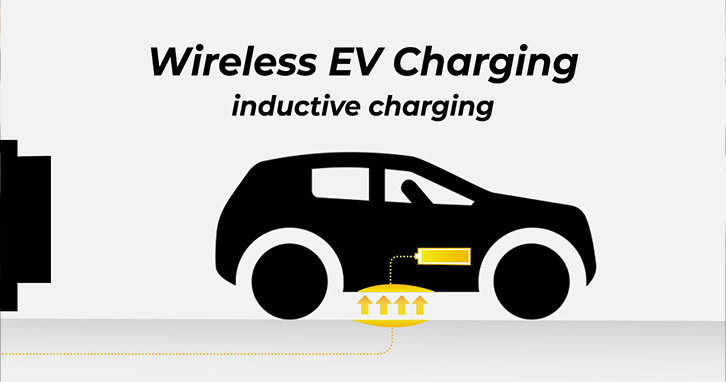

Wireless EV Charging: Unlike traditional charging methods, wireless charging does not rely on a physical connection to charge. It works on the same principle as wireless charging for smartphones, where electric vehicles receive energy through resonant electromagnetic induction, also known as “inductive charging.” In the global market, wireless charging technology is developing rapidly, particularly in the United States.

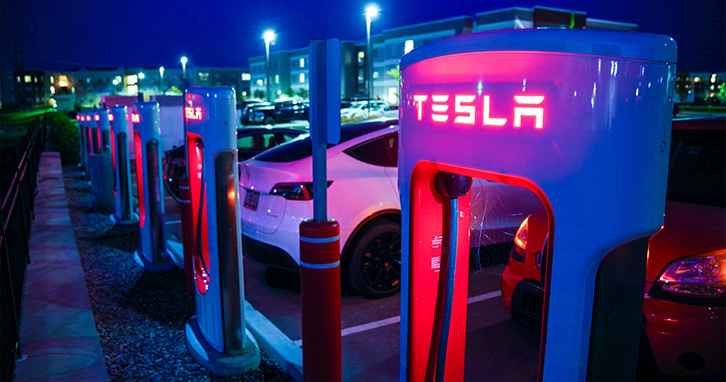

Tesla Supercharger System: As a leader in the electric vehicle industry, Tesla has played a significant role in advancing and popularizing electric vehicle technology. The Tesla Supercharger System is a rapid charging network established by Tesla for its electric vehicles. It is incompatible with electric vehicles from other brands, meaning that non-Tesla vehicle owners cannot use this charging network. This exclusivity means that the Supercharger network is reserved solely for Tesla owners.

EV Charging Time and Speed

The charging speed for different types of electric vehicle (EV) charging varies and is influenced by several factors, including the power output of the charging station, the vehicle’s charging capacity, and the state and type of the battery. Here are rough charging speed references for different types of charging:



Level 1 Charging

Based on the standard configuration of a typical North American household electrical outlet using 120V AC power, it generally provides about 1.2kW to 1.8kW of power for charging. It can add approximately 2-5 miles of driving distance per hour to an electric vehicle. The charging speed is slow, and the efficiency is low.

Level 2 Charging

Uses 240V AC power with a power range typically between 3.3kW and 19.2kW. The specific power is determined by the charging station’s configuration and the vehicle’s charging capability. It generally can provide enough energy for an electric vehicle in a few hours, making it suitable for daily use.

Level 3 Charging (DC Charging)

Level 3 charging uses very high voltages, typically between 400V and 1000V, with a power range of 50kW to 350kW. The charging efficiency is very high, capable of providing 80% of charge to an electric vehicle within 25-35 minutes, which is very convenient.



Mode 2 Charging

Mode 2 charging generally uses a standard household power source. Due to different voltage standards in different regions, such as 120V AC in North America and 230V AC in Europe, the charging power range is between 3.7kW and 7.4kW. It can roughly provide a 12-25 mile driving distance per hour.

Mode 3 Charging

Like Level 3, Mode 3 charging uses high voltage, such as 240 volts AC in North America or 230 volts AC in Europe and other regions. Some devices also support higher voltage three-phase power. The power generally ranges from 3.7kW to 22kW, offering a very fast charging speed, adding about 15-70 miles of driving distance per hour to an electric vehicle.

Wireless EV Charging

The power provided by current wireless charging technology generally ranges between 3.3kW and 22kW. Since wireless charging technology is still in development and most electric vehicles do not support wireless charging functionality, the speed of wireless charging is usually not as fast as wired charging.

Tesla Supercharger System

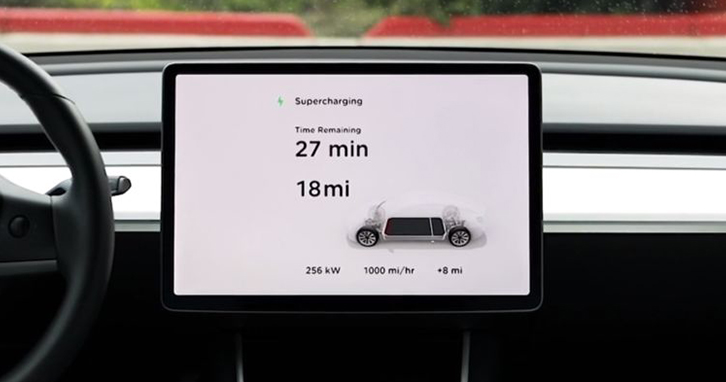

As mentioned before, the Tesla Supercharger System is a dedicated rapid charging network designed for Tesla owners. Depending on the charging equipment, charging times vary. For example, the V2 Supercharger can charge up to 80% in about 30 minutes with a maximum charging power of 150kW, while the V3 Supercharger, with a maximum charging power of 250kW, can complete 80% charging in about 15-20 minutes.



Impact of Charging on Battery Health

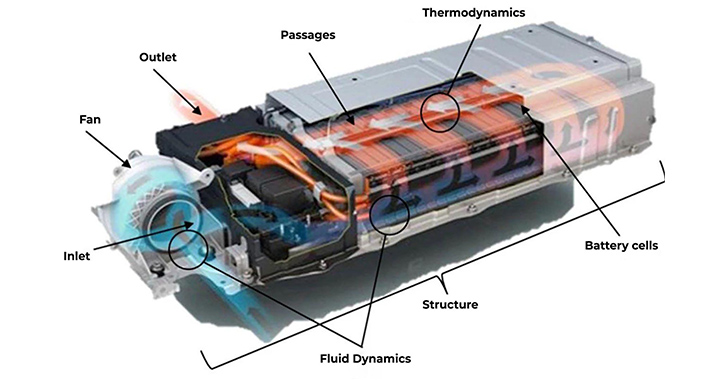

The significance of batteries in electric vehicles (EVs) is akin to the human heart, with lithium-ion batteries being the most common type in EVs today. How do different charging methods affect the lifespan of EV batteries, and how can battery wear be minimized? Let’s explore further.

Understanding How Batteries Wear Out

Lithium-ion batteries, the most commonly used battery type on the market, are found in smartphones, laptops, electric vehicles, and other electronic devices. These batteries are affected by various factors such as temperature, cycle, and time during use.

How Different Charging Types Affect Battery Longevity

Heat During Charging: Among the many types of charging, the biggest controversy is whether DC charging damages EV batteries. Generally, the higher the charging power, the shorter the charging time. While enjoying the benefits of DC fast charging technology, you may notice that the battery heats up. Overheating can stress the battery, accelerating wear and degradation. This fact is undeniable. However, with the advancement of EV charging technology, most electric vehicle batteries are now designed with cooling systems to handle the high power loads from DC charging.

Depth of Discharge: Similar to most electronic devices, frequently draining the battery to 0% before charging can shorten its lifespan.

Tips for Keeping Your EV Battery Healthy

Although battery aging and health decline over the life of an electric vehicle are inevitable, there are ways to reduce the rate of battery wear, such as:

  • Avoid overcharging.
  • Be mindful of charging speed.
  • Prefer AC charging whenever possible.
  • Minimize exposure to extreme temperatures when parked.
  • Maintain a charge between 20%-80%.
  • Avoid keeping the battery at a 100% charge state.
  • Avoid charging the EV when the battery is hot.

By following these guidelines, you can help extend the life of your EV’s battery, ensuring it remains healthy for longer.

Choosing the Right EV Charging Type

When navigating through the various charging options, how should you choose the right one? Many people often consider only the cost of charging, overlooking other important factors. By considering the following dimensions, you can find the most suitable charging type for your vehicle.

Charging Location

The charging location is a crucial factor to consider. You can choose to charge at home, in parking lots, at service stations, malls, or any other location that offers charging services.

In daily life, vehicles are often parked for extended periods, such as overnight or during work hours. In these situations, AC charging is sufficient, as it provides enough time to charge without damaging the battery. Therefore, AC EV chargers are commonly used in homes and urban parking lots.

At highways and service stations, car owners usually want to charge quickly and continue their journey. Thus, these locations are generally equipped with DC EV Charging. DC charging can charge up to 80% of the battery in about 30 minutes, making it ideal for long trips and significantly reducing waiting times for drivers.

Electric Vehicle Compatibility

Different brands and models of electric vehicles have varying compatibilities with charging speeds and types. Some models may not support DC fast charging or have limited fast charging capabilities. Understanding the charging types and speeds supported by your vehicle will help you make a better choice and plan your charging more effectively.

Charging Cost

The cost of charging an electric vehicle varies depending on the type of charging and location. Home charging is usually the most cost-effective option, and in some areas, charging costs are lower at night than during the day. Public charging stations generally have higher charging rates, especially DC charging stations, which usually cost more.

By taking into account the location, vehicle compatibility, and cost of charging, you can make an informed decision on the most appropriate charging type for your electric vehicle, ensuring that your charging practices are both efficient and economical.

Tesla and Its Unique Position in EV Charging

Tesla occupies a unique position in the electric vehicle (EV) charging domain, primarily because it has established its own global charging network—the Tesla Supercharger system. Tesla owns the world’s largest fast-charging network, with over 50,000 Supercharger stations designed specifically for Tesla owners, offering fast and convenient charging services.

How Tesla’s Charging Works

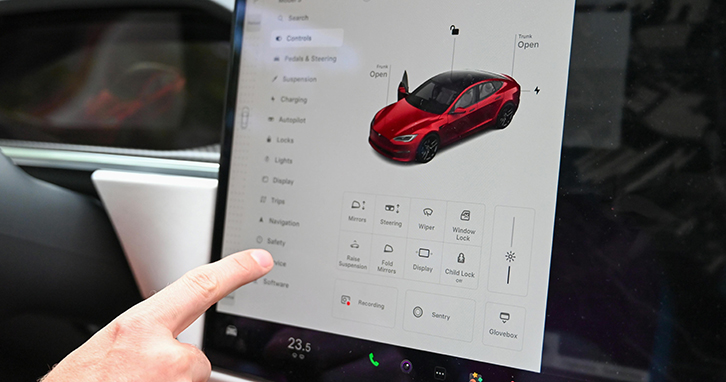

Owners simply need to enter their destination in the Tesla app, and the Trip Planner automatically calculates the charging route. Supercharger stations are located on main roads, near convenient facilities, allowing owners to just plug in the charging plug and enjoy a coffee, stretch their legs, or play games. Owners can monitor their vehicle’s charging status in real-time, and payment is effortless with no need to swipe a credit card, as automatic billing is enabled.

Tesla’s Impact on Charging for All EVs

Tesla has not only set new standards for EV charging with its Supercharger system but has also played a crucial role in promoting the development of the EV charging infrastructure and innovation in charging technology. Tesla’s presence has heightened the urgency for other manufacturers to establish or expand their charging networks, thereby providing more charging options for all EV users. Furthermore, Tesla has, in some cases, collaborated with other car manufacturers to share its charging network. This open approach may foster broader collaboration and standardization within the industry, benefiting the entire EV ecosystem.

Future Trends in EV Charging

As the electric vehicle (EV) market continues to flourish, EV charging technology and infrastructure are also evolving rapidly. We’re looking forward to witnessing exciting new developments, including advanced charging technologies, smarter charging methods, and better grid integration. Here’s a deeper look into these future trends:

New Technologies in EV Charging

Wireless Charging Technology: Wireless charging technology is making its way into the market and could become the standard setup for homes and public parking lots in the future. This technology allows electric vehicles to charge automatically by simply parking on a charging pad, eliminating the need for plugging in and making the charging process more convenient and seamless.

Ultra-fast Charging Technology: Currently, fast charging can charge an electric vehicle up to 80% in 25-30 minutes. In the future, we expect to see even more efficient charging technologies that could enable electric vehicles to charge enough for several hundred kilometers of travel within just a few minutes.

What to Expect in Charging Tomorrow

Wider Charging Network Coverage: As the number of electric vehicles increases, we expect to see a significant expansion in the number of charging stations globally, not just in city centers but also in remote areas and along highways, ensuring that EV owners can find a charging station wherever they are.

Multifunctional Charging Stations: Future charging stations may become multifunctional centers, offering amenities like rest areas, coffee shops, retail stores, etc., allowing owners to enjoy convenient services while waiting for their vehicle to charge.

Sustainable and Environmentally Friendly Charging: With increasing attention to climate change, future charging stations will more frequently use renewable energy sources such as solar and wind power, providing more environmentally friendly charging solutions.

Conclusion

BESEN is dedicated to providing high-quality AC electric vehicle (EV) charging equipment, focusing on innovation and reliability to meet the needs of various users and scenarios. Our goal is to make EV charging easier. We welcome you to contact us to explore cooperation opportunities and jointly promote the advancement of electric vehicle charging technology.
