What You Need to Know about Level 3 Charging Station?

Introduction

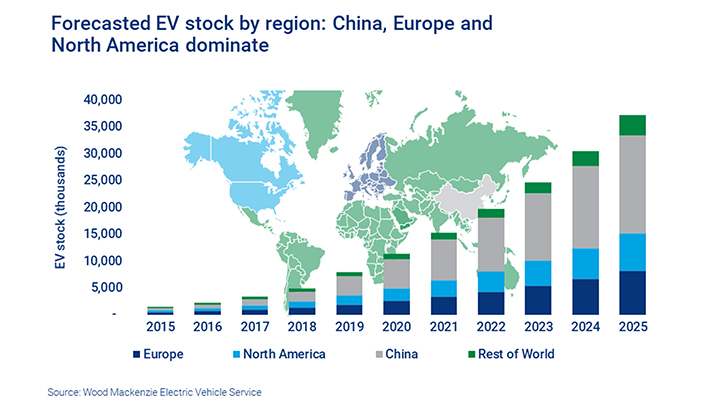

The surge in electric vehicle adoption is increasingly becoming the preferred choice for consumers when it comes to purchasing automobiles. One main reason is the improving battery technology, significantly boosting the range and performance of electric vehicles. Another key factor is the better and more widespread availability of charging infrastructure. Currently, the main charging equipment includes Level 2 and Level 3 (DC fast charging stations). This article will focus on Level 3 charging technology, aiming to provide a clear understanding of this type of charging station, including its operational principles, key components, and usage methods.

What is the Level 3 Charging Station?

Level 3 charging stations are a type of advanced charging equipment designed specifically to meet the growing demand in the electric vehicle market. They are tailored to fulfill the need for quicker charging. Unlike traditional Level 1 and Level 2 chargers, Level 3 stations boast higher charging speeds and power, allowing electric vehicles to reach full charge in a much shorter time.

As a result, they are commonly used for long-distance travel and in situations where a rapid charge is essential. The emergence of Level 3 charging stations has significantly improved the practicality and accessibility of electric vehicles, making them a more appealing choice for everyday transportation.

How does the Level 3 Charging Station work?

When an electric vehicle is connected to a Level 3 charging station, it uses a direct current (DC) power source to charge its battery directly, bypassing the vehicle’s internal charger. This means that electricity is sent directly to the electric vehicle’s battery system in the form of DC, skipping the need for the vehicle’s internal alternating current (AC) charger. As a result, this reduces energy loss and time during the conversion process.

Level 3 charging stations typically come with specially designed connectors that perfectly match the electric vehicle’s charging port, ensuring a safe and efficient charging experience. Once the connection is established, the charging station sends instructions to the electric vehicle to start delivering DC energy to the battery.

Main Components of Level 3 Charging Stations

Level 3 charging stations are advanced charging facilities designed to offer fast and dependable charging solutions for electric vehicles. They consist of several key components:

Charging Connectors

Integral to the charging process, charging connectors establish the connection between the charging station and the electric vehicle, ensuring the safe transmission of electricity. Well-designed connectors are adaptable to various electric vehicle charging interfaces, facilitating a smooth charging process and enhancing safety and stability. Reliability is paramount for these connectors, providing a dependable foundation for the charging process.

Charging cable

The conduit for power transfer charging cables plays a vital role in the efficiency and safety of the charging process. They must possess sufficient current capacity to meet the high-power demands of electric vehicle charging and withstand prolonged use without damage. Typically constructed from high-quality materials, charging cables are designed to function reliably in diverse environmental conditions, often featuring waterproof and dustproof properties for outdoor usage.

User Interface

The user interface, comprising elements such as display screens and buttons, aims to provide an intuitive charging experience:

  • Displaying Charging Status: Providing real-time updates on the electric vehicle’s charging status, including charging percentage and speed, enabling users to monitor the progress of charging.
  • Operation Guide: Offering step-by-step instructions for connecting the charger, initiating charging, and completing payment, ensuring user convenience and safety.
  • Payment Information: Displaying charging costs and payment methods, such as card or mobile payments, allows users to make informed decisions and choose the most suitable payment option.



Difference Between Level 1 & Level 2 & Level 3 Charging Station

Power and Speed

Level 3 charging stations boast power outputs reaching tens of kilowatts, even up to hundreds of kilowatts. In contrast, Level 1 and Level 2 stations typically operate at a few kilowatts. This high-power feature translates to significantly faster delivery of electricity to electric vehicles, thus drastically reducing charging times. For instance, with a Level 3 station, an electric vehicle may achieve over 80% charge in as little as half an hour to an hour, whereas the same charging requirement could take several hours or more at a Level 1 or Level 2 station.

Connector Types

Different charging levels (such as Level 1, Level 2, and Level 3) typically employ distinct types of connectors to accommodate their corresponding charging equipment and electric vehicles. For Level 1 charging, a common connector type is the household socket, such as the NEMA 5-15, which is relatively simple and widely used, suitable for low-power residential charging needs.

Differently, Level 2 charging often utilizes connectors like SAE J1772 (in North America) and Type 2 (in Europe). These connectors are typically more sophisticated, support higher power charging, and are suitable for residential, commercial, and public charging stations. Level 3 charging, on the other hand, typically employs connectors such as CHAdeMO, CCS (Combined Charging System), or Tesla Supercharger. These connectors are designed to be more advanced and capable of supporting extremely high-power fast charging.

Installation Needs

In comparison to Level 1 charging stations, Level 3 charging stations necessitate more specialized equipment and technical support due to their increased complexity. This includes larger power chargers and more advanced control systems. Furthermore, the installation of Level 3 charging stations typically requires compliance with a greater number of regulations and standards to ensure safety and performance. Consequently, the installation process for Level 3 stations is more cumbersome and intricate, demanding a higher level of professional expertise and technical support.

Cost to Charge a Car with Level 3 Charging Station

The charging cost at Level 3 charging stations is a crucial factor influencing user preferences. Typically, these costs are determined by various factors, including energy costs in the area, the policies of the charging station operator, and the charging needs of users. Generally, Level 3 charging stations tend to have higher charging fees compared to Level 1 and Level 2 stations.

In some regions, charging stations may adopt either time-based or volume-based billing methods. Time-based billing requires users to pay a fee to cover the duration of their station usage, while volume-based billing calculates charges based on the actual amount of electricity consumed. Additionally, some stations may offer membership plans or discount incentives, providing users with more favorable charging rates.

For instance, in the United States, the average price for using Level 3 charging is approximately 40-50 cents per kilowatt-hour. However, this price may vary significantly across different states and cities; for example, charging costs in California may be higher than those in the Midwest. In recent years, the UK government has been actively promoting the adoption of electric vehicles and supporting the development of the electric vehicle market through various incentive measures. Statistics indicate that the average price for Level 3 charging in the UK ranges from 50 to 60 pence per kilowatt-hour.

The Challenges of Using Level 3 Charging Stations

Level 3 charging stations offer the capability of fast charging, significantly reducing charging times. However, they also bring forth various challenges and considerations.

Impact on Battery Health

Level 3 charging may have potential implications for the long-term health of electric vehicle (EV) batteries to some extent. It’s not that fast charging itself is harmful, but rather because during the charging process, the battery receives higher currents and power inputs, leading to an increase in internal temperature. High temperature is one of the main factors contributing to battery degradation, as it accelerates electrolyte volatilization and electrode material wear.

Therefore, frequent and prolonged use of Level 3 charging stations may shorten the battery’s cycle life, meaning the time the battery can maintain peak performance will decrease. If the battery’s capacity degrades rapidly, it can result in the vehicle’s actual range falling short of expectations.

Grid Infrastructure and Power Demand

Level 3 charging stations, with their high-power output, meet the needs of electric vehicle users but also pose challenges for the power grid. These stations can deliver much more electricity than regular households need, potentially straining local grids that haven’t been upgraded. If many Level 3 stations pop up in an area and lots of electric cars are charging quickly at the same time, it could overwhelm the grid. This might cause problems like voltage drops, grid overload, or even power outages, which would inconvenience and cost local residents and businesses.

Compatibility and Standardization

Compatibility issues with Level 3 charging stations are a major concern, particularly regarding connectors and their compatibility with different electric vehicle (EV) models. The EV market has various charging interfaces and connector standards like CHAdeMO, CCS, and Tesla Supercharger. Manufacturers using different interface standards can lead to interoperability problems among Level 3 charging stations. This lack of standardization creates practical challenges for EV owners. When they need rapid charging, they may find nearby stations that don’t support their vehicle or require adapters. This not only inconveniences users but also disrupts travel plans and causes trouble.

Environmental Impacts

While electric vehicles (EVs) offer clear environmental benefits compared to traditional internal combustion engine vehicles, the swift expansion of charging infrastructure, especially the widespread installation of Level 3 charging stations, has prompted concerns about their environmental impact. The manufacturing, installation, and operation of these fast charging stations demand significant energy and resources. Throughout the entire process, from raw material extraction to production, transportation, and installation, a considerable amount of carbon emissions and environmental impact is generated. Moreover, the dependence of many fast charging stations on electricity from fossil fuels raises questions about their overall sustainability.

What Cars Can Use the Level 3 Charging Station?

Level 3 charging stations come equipped with specific connectors tailored to match the charging ports of electric vehicles. At present, most fully electric vehicles and some plug-in hybrid models can utilize Level 3 charging stations for their recharging needs. Typically, vehicles capable of using Level 3 charging stations must have compatible charging interfaces and battery management systems to support the high-power direct current fast charging.

Tesla models are known for being equipped with Tesla’s proprietary Supercharger, a Level 3 charging facility designed specifically for rapidly charging Tesla electric vehicles. Conversely, other popular electric vehicle brands like Nissan, Chevrolet, and BMW often utilize CHAdeMO or Combined Charging System (CCS) connectors, which are compatible with Level 3 charging facilities.

However, it’s important to recognize that not all electric vehicles support Level 3 charging technology. For example, some earlier models may only support Level 1 and Level 2 charging, rendering them incompatible with Level 3 charging stations for rapid recharging. Consequently, when selecting charging facilities, users should confirm whether their vehicles are compatible with Level 3 charging technology and choose the appropriate charging stations accordingly.

Best 5 Level 3 Charging Stations

In today’s market, there are five leading Level 3 electric vehicle charging stations. These stations offer efficient charging experiences tailored to meet the diverse needs of electric vehicle owners.

Tesla Supercharger Network

Tesla has consistently maintained a leading position in the electric vehicle industry, with its Supercharger network standing out as one of the largest and most reliable charging infrastructures globally. Spanning major highways and urban hubs across North America, Europe, and Asia, Tesla’s Supercharger stations offer Tesla owners convenient access to high-speed charging services. Leveraging unique technology, Tesla vehicles can rapidly recharge, significantly enhancing the convenience and efficiency of travel.

Electrify America

Supported by Volkswagen Group, Electrify America boasts a top-tier public charging network across the United States. Its charging stations utilize CCS (Combined Charging System) and CHAdeMO connectors, delivering rapid charging services for compatible electric vehicles. Emphasizing reliability and sustainability, Electrify America equips many charging stations with solar panels and energy storage devices. Its user-friendly mobile application offers real-time station status and convenient payment methods, ensuring an optimal charging experience for electric vehicle drivers.

A dark-themed infographic map of the United States, highlighting Electrify America’s plans for 2023.

EVgo

EVgo is a leading electric vehicle charging network operator in North America. Their Level 3 charging stations are typically located in high-traffic areas such as city centers, highway rest stops, shopping centers, and restaurants to provide convenient charging services for electric vehicle owners. EVgo Level 3 chargers typically offer to charge power ranging from 50 kilowatts to 350 kilowatts, with the actual speed depending on the compatibility of the vehicle and the facilities of the charging station. Some stations may also offer higher-power chargers to meet the needs of future higher-power electric vehicles.

IONITY

IONITY is a joint venture formed by major automotive manufacturers such as BMW Group, Daimler AG, Ford Motor Company, and Volkswagen Group, operating across Europe. Positioned along major highways, its charging stations aim to facilitate long-distance travel across European countries. Equipped with CCS connectors, IONITY’s Level 3 charging stations offer ultra-fast charging services for electric vehicles. With an increasing number of stations powered by renewable energy sources, IONITY contributes to reducing carbon emissions and promoting sustainable transportation development in Europe.

ChargePoint

ChargePoint is a pioneering supplier of Level 3 electric vehicle charging solutions, specializing in delivering efficient charging options for commercial fleets, workplaces, retail outlets, and public areas. Their Level 3 charging stations are renowned for their exceptional scalability and flexibility. With dynamic power management features, these stations optimize resource utilization and provide charging services to multiple vehicles simultaneously, ensuring maximum efficiency.

Future of Level 3 Charging Station

In the coming years, we can expect governments, automakers, and charging infrastructure providers to collaborate in accelerating the deployment of fast-charging stations, particularly along major highways and city centers. The future of Level 3 charging stations is closely tied to the broader electrification of transportation. As cities worldwide implement measures to reduce air pollution and address climate change, electric vehicles (EVs) are emerging as a key sustainable transportation solution. Level 3 charging stations will be a cornerstone of this electrified future, enabling drivers to embrace emission-free travel without compromising convenience or performance.



FAQs

How to find Level 3 charging Stations?

Level 3 charging stations, also known as DC fast chargers, can be located using various mobile apps or websites dedicated to electric vehicle (EV) charging. Popular platforms like PlugShare, ChargePoint, and Electrify America provide real-time information about the location, availability, and compatibility of Level 3 chargers.

Can a Chevy Volt charge at a level 3 station?

No, the Chevy Volt is not compatible with Level 3 charging stations. It utilizes a Level 2 charging system, which operates at a lower power output. However, newer Chevrolet models like the Bolt EV are capable of charging at Level 3 stations.

How long does it take to charge an electric car with the level 3 charging station?

Charging time at a Level 3 station depends on several factors, including the vehicle’s battery capacity, current state of charge, and the charging rate of the station. Generally, Level 3 chargers can provide a significant amount of power, enabling EVs to achieve an 80% charge in as little as 30 minutes.

How much does a Level 3 EV charging station cost?

The cost of a Level 3 EV charging station varies depending on factors such as brand, charging capacity, and installation requirements. On average, a commercial-grade Level 3 charger can range from $40,000 to $175,000. Additionally, there may be installation and maintenance expenses to consider.

Can Level 3 charging stations be used for home charging?

While Level 3 charging stations are primarily designed for commercial and public use, it is technically possible to install one for home use. However, due to their high power output and complexity, Level 3 chargers are not commonly used for residential charging. Most homeowners opt for Level 1 or Level 2 chargers, which are more suitable for home installations and offer sufficient charging speeds for daily use.
