RFID Card EV Charging
The RFID EV Charger utilizes RFID (Radio Frequency Identification) technology to initiate and manage the charging process of electric vehicles. This charger uses RFID cards to identify and authenticate users, providing a secure charging service. Below is an overview of the basic workflow and features of RFID EV chargers:
Workflow:
- Authentication: Users present their RFID card near the charger’s RFID reader.
- Data Reading: The RFID reader scans the card’s information, typically including user ID or payment details.
- Verification: The system verifies the scanned information, and upon confirmation of user authorization, the charger unlocks and begins charging.
- Completion: Upon finishing the charge, users can use the RFID card again to end the charging process.
Features:
- Safety: Requiring an RFID card to initiate charging enhances security, preventing unauthorized use.
- Convenience: Users can quickly start charging by simply presenting the card to the reader, eliminating complex procedures.
- User Experience: A contactless and rapid response is especially suitable for high-traffic public charging stations.
BESEN’s RFID EV chargers provide a simple, safe, and efficient way to manage electric vehicle charging, particularly beneficial in shared or commercial environments where controlling access to charging facilities is crucial, significantly improving the user and operator charging experience.
Standard RFID Cards
Each BESEN RFID EV charging station includes 5 standard RFID cards. These cards are pre-configured to work seamlessly with our charging stations, providing immediate usability and ensuring a smooth and secure charging experience for authorized users.
Benefits of Standard RFID Cards:
- Plug and Play: Ready to use right out of the box. No additional setup is required.
- High Compatibility: Specifically designed to integrate flawlessly with BESEN EV charging stations.
- Security: Ensures only authorized users can access the charging station, enhancing security.
Custom RFID Cards
BESEN offers the option to customize your EV charging cards with prints featuring your company’s unique designs. These custom RFID cards are tailored to meet your electric vehicle business’s specific branding and operational needs, providing functionality and a professional appearance.
Advantages of Custom RFID Cards:
- Brand Visibility: Enhance your brand’s presence by incorporating your logo and design elements on the RFID cards.
- Tailored Solutions: Customize the cards to include specific information or functionalities your business requires.
- Professional Look: Create a cohesive and professional look for your EV charging infrastructure.
- Enhanced User Experience: Make it easier for your customers or employees to identify and use the charging stations with branded RFID cards.

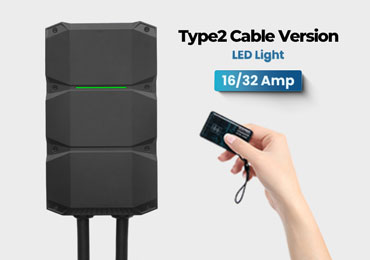

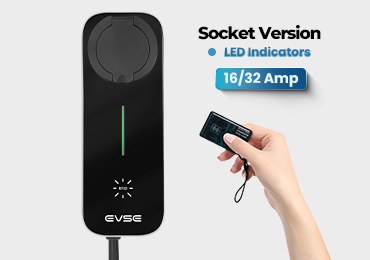

BESEN RFID Charging Stations
RFID EV Chargers Data Sheet
| Specification | BS20 RFID EV Charger | BN30 RFID EV Charger | BS30 RFID EV Charger | CC40 RFID EV Charger | SQ20 RFID EV Charger | SQW45 RFID EV Charger | |
| Connector and Electrical | Input Voltage / Output Voltage | AC 230V/400V | AC 230V/400V | AC 230V/400V | AC 230V/400V | AC 230V/400V | AC 230V/400V |
| Input Frequency | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 50~60Hz | 47~63Hz | |
| AC Power Output Rating | 3.6kW / 7.2kW /11kW / 22kW | 3.6kW / 7.2kW /11kW / 22kW | 3.6kW / 7.2kW /11kW / 22kW | 3.6kW / 7.2kW /11kW / 22kW | 3.6kW / 7.2kW /11kW / 22kW | 3.6kW / 7.2kW /11kW / 22kW | |
| Max. Output Current | 32A | 32A | 32A | 32A | 32A | 32A | |
| Connector Type | SAE J1772, IEC 62196-2, GB/T | SAE J1772, IEC 62196-2, GB/T | IEC 62196-2 | IEC 62196-2 | IEC 62196-2 | IEC 62196-2 | |
| Performance and Safety | Ingress Protection | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Impact Protection | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | |
| Electrical Protection | Under Voltage Protection / Over Load Protection / Short Circuit Protection /Leakage Protection / Over-temp Protection / Lightning Protection | ||||||
| RCD Type | Type A / Type A+6mA DC | Type A / Type A+6mA DC | Type A / Type A+6mA DC | Type A / Type A+6mA DC | Type A / Type A+6mA DC | Type A / Type A+6mA DC | |
| Environment Temperature | -25°C~55°C | -25°C~55°C | -25°C~55°C | -25°C~55°C | -25°C~55°C | -25°C~55°C | |
| Certifications | CE/FCC/CSA/RoHS/ETL/REACH | CE/RoHS | CE/RoHS | CE/RoHS | CE/RoHS | CE/RoHS/REACH | |
| Function | Current Adjusting | Yes | Yes | Yes | Yes | Yes | Yes |
| Ethernet/WIFI/4G/Bluetooth | Optional | Optional | Optional | Optional | Optional | Optional | |
| LED Indicator Light | Yes | Yes | Yes | Yes | Yes | Yes | |
| LCD Display Screen | 3.5-inch Color Display | No | No | No | 3.5-inch Color Display | 3.5-inch Color Touch Display | |
| Mounting Method | Wall-Mounted / Ground-mounting Pole | ||||||
| Mechanical | Dimension(L/W/D) | 295/195/65mm | 120/100/280mm | 325/120/87mm | 460/305/270mm | 430/255/260mm | Mode A 490/160/250mm Mode C 430/255/260mm |
| Weight | 6kg~8kg | 4kg~6kg | 3.5kg | 6~8.5kg | 6.5kg | 5~8kg | |
Interested in Our Products?
Benefits of Commercial EV Charging Solution
RFID cards enhance usability. Due to the simplicity of use and charging, RFID is ideal for those unfamiliar with applications or technology. Whether for dedicated home use, public, or workplace EV chargers, if convenience and speed are your priorities, an RFID EV charger might be your best choice.
Need Help? Talk to Our Sales Team Now！
The RFID card is a smart feature that can be used with home EV chargers, but is more commonly used to manage charging at public charging stations or workplace EV chargers. To use it, you simply scan the RFID card in the identification area on your chosen charger to start charging, and then click again to stop charging.
When choosing the best RFID electric vehicle charger manufacturer, there are several criteria you should consider to ensure you get a quality product that meets your needs. Here are some of the most important considerations:
Quality, Compatibility, User-Friendliness, Price, Customer Support, Reputation. For more details, please refer to the RFID EV Charging Station Purchase Guide
To get samples or more information, you can contact our sales team. They are available for free consultations and can provide pricing details tailored to your specific needs.
BESEN conducts rigorous testing and quality control on all products to meet the highest industry standards. Our chargers are built with high-quality materials and advanced technology to ensure durability and reliable performance in various environments.
BESEN provides comprehensive support, including technical assistance with installation, troubleshooting, and maintenance. We also offer training and resources to help you and your team effectively use our products.
