BESEN SQW45 EV Charging Station
High-Spec Model with 22kW Power and LCD Touch Screen
- Maximum Power: 3.6KW/7.2KW/11KW/22KW
- Function: Basic / App Control / Rfid Card Swipe version
- Certificate: CE/RoHS/REACH
- RCD Type: Type A / Type A 30mA AC+6mA DC
- Mounting Options: Wall-Mounted/Pole-Mounted
- Weight: 5kg-8kg
- ODM&OEM Available
BESEN SQW45 EV Charging Station Overview
Our offering, the SQW45 EV Charging Station, combines advanced technology, intuitive features, and robust safety mechanisms to deliver an outstanding charging experience for both residential and commercial use.
Basic (Plug and Play): Ideal for straightforward charging needs, providing a hassle-free experience for everyday users.
App Control: Manage your charging sessions with our intuitive mobile application. Monitor charging status, schedule charging times, and download charging data right at your fingertips.
RFID Card Swipe: Enhance security and streamline access with RFID card functionality, perfect for commercial settings or multi-user environments.
Highlighted Features Across All Versions:
Wall or Pole Mounting: Choose between wall or pole mounting to suit your space and preferences. Whether it’s a compact wall setup for urban locations or a more versatile pole-mounted option for wider coverage, the installation process is designed for simplicity and efficiency.
Integrated 3.5-inch Touchscreen Interface: Equipped with a responsive 3.5-inch touchscreen, the SQW45 enables direct on-device interaction without relying on external tools. Users and operators can easily view charging status, adjust settings, and navigate functions through an intuitive interface.
Comprehensive Safety Protections: Designed with multiple safety features to keep both users and equipment safe, the system includes under voltage protection, overload protection, short circuit protection, leakage protection, over-temperature protection, and lightning protection. These layers of protection ensure smooth and secure operation every time.
Why Choose the SQW45 EV Charging Station?
SQW45 EV Charging Station offers best-in-class quality for businesses seeking reliable, user-friendly, and future-ready solutions. Built with high-quality components and tested for durability, it ensures consistent and dependable performance day in and day out. Designed for ease of use from installation to daily operation, this charger simplifies EV charging and meets the needs of both businesses and customers. Additionally, its future-proof design with customizable features ensures the station can evolve alongside the growing demands of electric vehicle technology.
BESEN SQW45 EV Charging Design
- Parameter
- Mounting Method
- Mode A & Mode C
| Specification | SQW45 | |
| Product Category | EV Charging Station | |
| Connector and Electrical | Input Voltage / Output Voltage | AC 230V/400V |
| Input Frequency | 47~63Hz | |
| AC Power Output Rating | 3.6kW / 7.2kW /11kW / 22kW | |
| Max. Output Current | 32A | |
| Connector Type | IEC 62196-2 | |
| Performance and Safety | Ingress Protection | IP66 |
| Impact Protection | IK10 | |
| Electrical Protection | Under Voltage Protection / Over Load Protection / Short Circuit Protection /Leakage Protection / Over-temp Protection / Lightning Protection | |
| RCD Type | Type A / Type A+6mA DC | |
| Environment Temperature | -25°C~55°C | |
| Certifications | CE/RoHS/REACH | |
| Function | Current Adjusting | Yes |
| Ethernet/WIFI/4G/Bluetooth | Optional | |
| LED Indicator Light | Yes | |
| LCD Display Screen | 3.5-inch Color Touch Display | |
| Mounting Method | Wall-Mounted / Ground-mounting Pole | |
| Basic | Yes | |
| App Control | Yes | |
| Rfid Card Swipe | Yes | |
| Dynamic Load Balancing | No | |
| Ocpp | No | |
| Mechanical | Dimension(L/W/D) | Mode A 490/160/250mm Mode C 430/255/260mm |
| Weight | 5~8kg | |

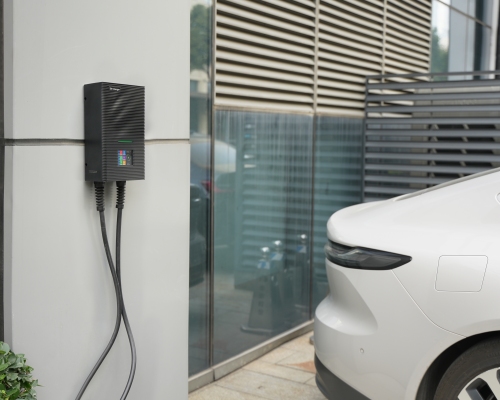

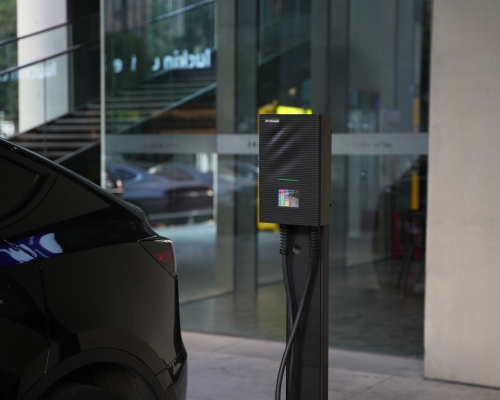

| Wall-Mounted EV Charger | Pole-Mounted EV Charger |
 |  |
Advantages of EV Wall Charger
Best Installation Places Home Garages: Perfect for homeowners who park their cars in the garage. | Advantages of Pedestal EV Charger
Best Installation Places
|
| Mode A (Socket Version) | Mode C (Cable Version) |
 |  |
| This option includes an integrated Type 2 socket outlet on the charger box, allowing users to connect their own Mode 3 charging cables. This flexibility supports a wide range of electric vehicles and provides the ability to upgrade or replace cables as needed, making it ideal for environments with varying user requirements. | Featuring a built-in EV charging cable, this version delivers a direct and convenient connection to the vehicle. Perfect for locations where ease of use and immediate accessibility are essential, the cable version streamlines the charging process by eliminating the need for additional equipment, ensuring a hassle-free experience for users. |
Versatile EV Charging for Every Need
Basic Version
The Basic Version offers a straightforward and reliable charging experience. Simply plug the cable into the vehicle, and charging begins automatically. The intuitive 3.5-inch color display provides clear information on charging status. Ideal for users seeking simplicity, the Basic Version ensures effortless, efficient charging without the need for complex setups or additional features. Perfect for home or low-traffic commercial environments.
App Control Version
Experience complete control and visibility with the App-Controlled option of the SQW45 EV Charging Station, accessible through the EVSEMaster app. This version allows users to monitor real-time charging status, track energy usage, and schedule charging sessions for optimal convenience and cost savings. Additionally, the app enables the download of detailed charging data, such as usage statistics, empowering users to assess efficiency and plan maintenance effectively.
RFID Card Swipe Version
Enhance security and manage access effortlessly with the RFID Card Access option of the SQW45 EV Charging Station. Only users with authorized and registered RFID cards can initiate a charging session, making it perfect for commercial charging stations, workplaces, or fleet management operations. This feature ensures that charging is restricted to authorized individuals, preventing unauthorized use and maintaining a secure and organized charging environment.
Why Choose BESEN SQW45 Electric Vehicle Charging Station?
BESEN SQW45 Electric Vehicle Charging Station Features
- 3.5 inch Color Touch Screen
- Installation Guide
Here is the breakdown diagram of the LCD color display screen interface. You can refer to the functions of the touch screen (view the images from left to right).
 |  |  |

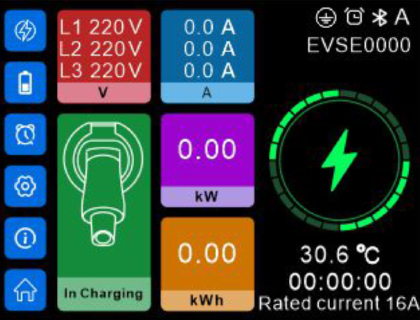

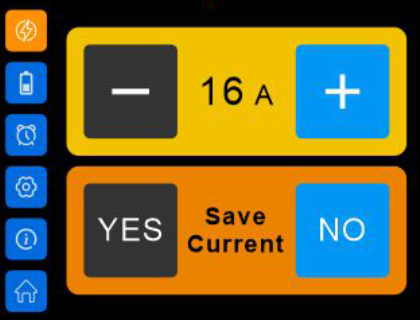

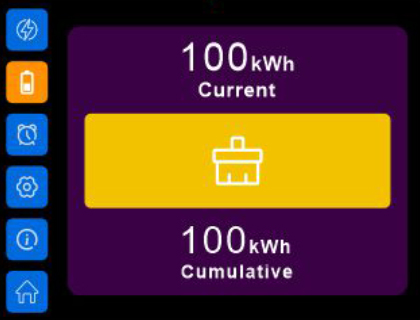

| Charging Interface | Current Setting Interface | Accumulated Energy Reset Interface |
 |  |  |

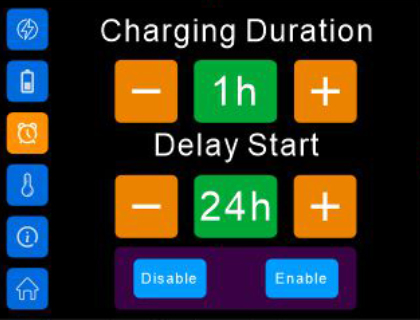

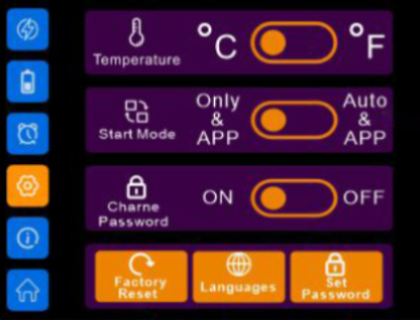

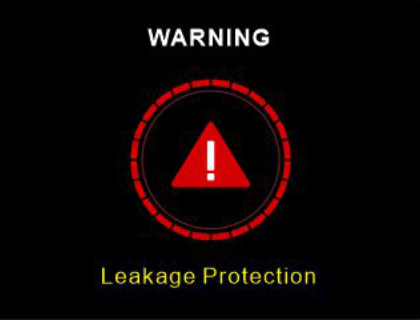

| Charging Duration & Delay Setting Interface | General Setting Interface | Fault Reporting Interface |
 | The installation of the SQW45 EV Charging Station is simple and can be done with minimal tools. Whether you’re installing with a charging socket or a charging cable, the process remains largely the same. Follow these steps for a seamless installation. Components in the box: Back Plate, EV Charger, Plastic Bolts, Screws, Hook(for Cable Version) Required Tools: Electric Drill, Hammer, Screwdriver1. Prepare the Mounting Surface Position the reference paper (template) on the desired location and mark the drilling points. Use an electric drill to drill holes at the marked positions.2. Install the Plastic Bolts Insert the 30mm plastic bolts into the drilled holes, then use a hammer to secure them in place.3. Attach the Back Plate Remove the reference paper and attach the back plate to the mounting surface using the 30mm screws.4. Place the Charging Station Position the charging station onto the secured back plate.5. Secure the Charging Station Use the remaining 30mm screws to fasten the charging station firmly to the back plate.6. Connect the Wires Connect the power, ground, and other wires according to the station’s wiring instructions. Ensure all connections are secure. 7. Optional: Install Cable Hook (if applicable) |
What Customization Options Are Available for the SQW45 EV Station? (5)
-
Enhance brand visibility by incorporating your company’s logo onto the charging station. This customization ensures a professional appearance and strengthens your brand identity, making it ideal for commercial installations in retail, hospitality, or workplace settings.
-
Choose the cable length that best suits your operational setup. Whether for tight indoor spaces or expansive outdoor environments, selecting the appropriate cable length ensures convenience for users while maintaining a clean and efficient layout.
-
Select a cable color that aligns with your brand guidelines or enhances operational safety. Brightly colored cables can increase visibility in high-traffic areas, while subtle tones can blend seamlessly into premium or discreet installations.
-
Match the charger box color to your company’s branding or the aesthetic of the installation site. This option allows the station to integrate harmoniously into environments such as corporate offices, car parks, or public spaces while reinforcing your visual identity.
-
Localize the user interface to ensure accessibility for diverse audiences. This feature is particularly beneficial for businesses operating in multilingual regions or serving international customers, ensuring a seamless user experience.
Know More About SQW45 EV Car Charger
Additional SQW45 Charging Station Videos
Partner with BESEN as a Wholesaler
Join forces with BESEN and provide your customers with premium EV charging solutions, including the state-of-the-art SQW45 EV Charging Station. Benefit from competitive pricing, dependable support, and a diverse range of high-performance, safety-focused products. Elevate your business by embracing innovative technology and becoming a leader in the electric mobility revolution.

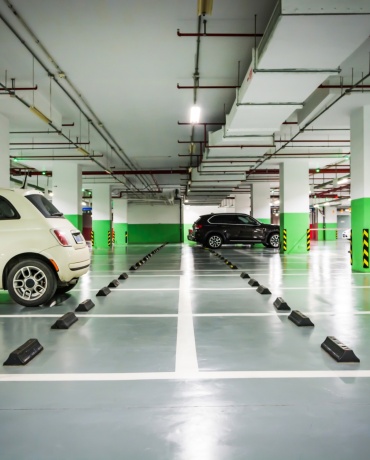

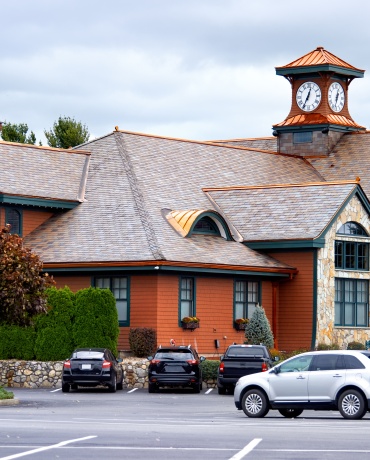

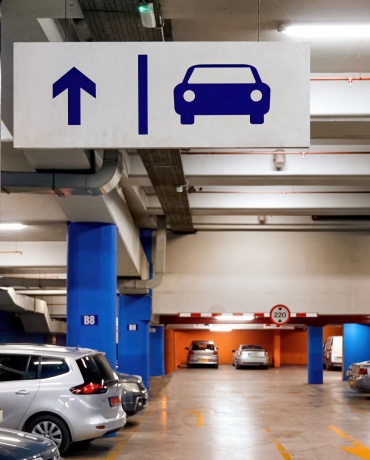

Perfect EV Charging Station for Every Setting

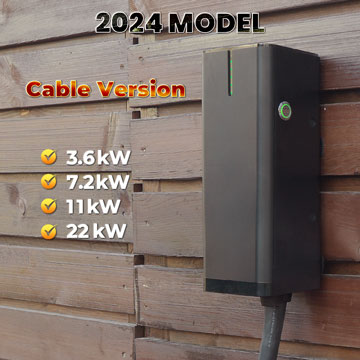

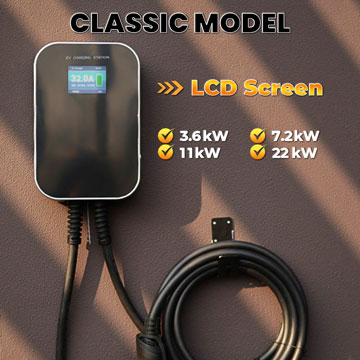

BESEN Level 2 Charging Station Series (5)
The SQW45 electric car charger is compatible with most electric vehicles that use standard connectors such as Type 2. Please ensure that your vehicle supports the appropriate connector type or consult our team to confirm compatibility.
The SQW45 charging station comes with a 2-year warranty, ensuring peace of mind for EV owners and businesses.
Yes. With its flexible mounting options and RFID card access, you can easily scale up your charging infrastructure for fleet management, office buildings, or public charging networks.
Our customer support team is here to help! If you have any issues with the SQW45 EV charger or need assistance, you can reach out to us via email or phone. We also offer detailed user manuals and troubleshooting guides to assist with installation and operation.
We offer wholesale opportunities for businesses looking to distribute the SQW45 EV Charging Station. To start the wholesale process, please contact our sales team directly. We will provide you with detailed pricing, bulk order options, and shipping information. Our team is ready to assist you in setting up a wholesale account and ensuring a smooth ordering process.
